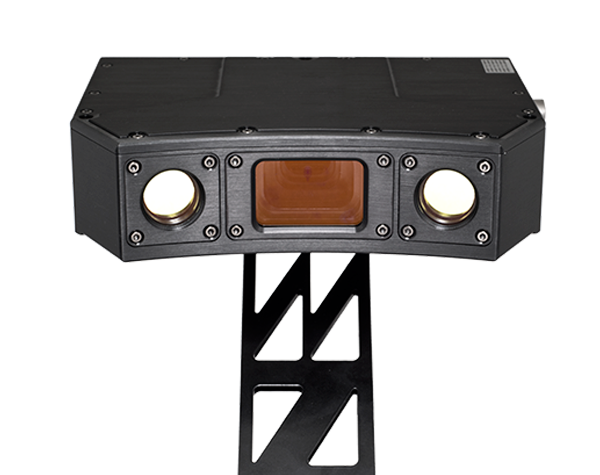

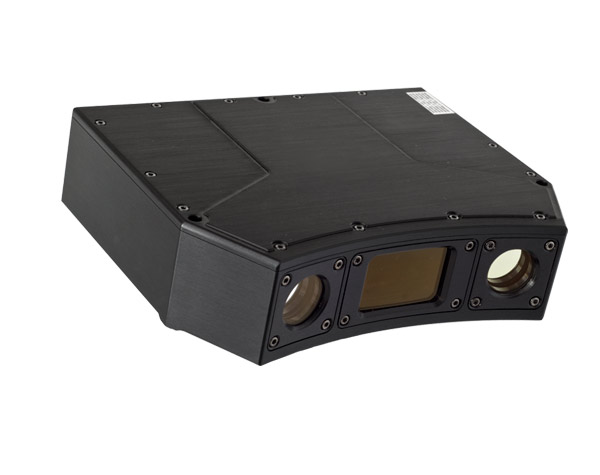

Polyga Compact C210

Perfect for capturing high resolution 3D scans of objects approximately the size of a shoebox.

Get Pricing

Product Description

• Type: Professional desktop 3D scanner (IP67 rated for industrial use)
• Dimension (mm): 49 x 146 x 190
• Cameras: A pair of 2 megapixel cameras, monochrome
• Software: Flexscan3D for 3D capturing and post-processing

Technical Specifications

• Field of view (mm):Area or volume the scanner can “see” at one time 98 x 71 – 154 x 100
• Point-to-point distance (mm):Distance between two points in a 3D model 0.06 – 0.09
• Accuracy: Closeness of a 3D measurement to the true value Up to 35 micron

Case Study

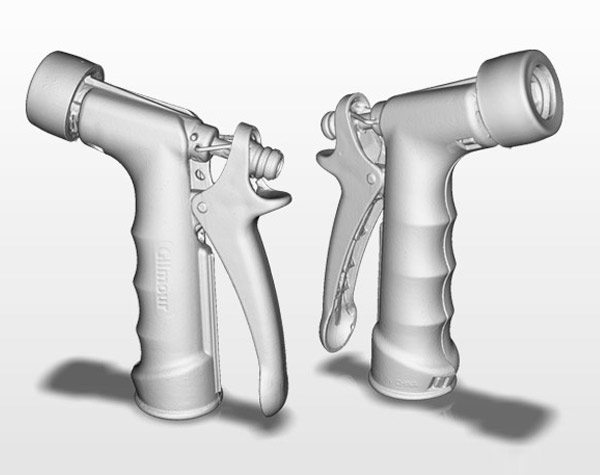

• Various Scans
• 3D Measurement
• Deviation Analysis
• Phone Battery
