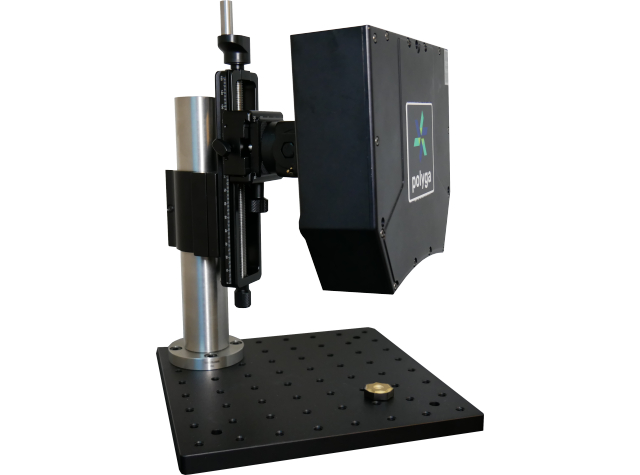

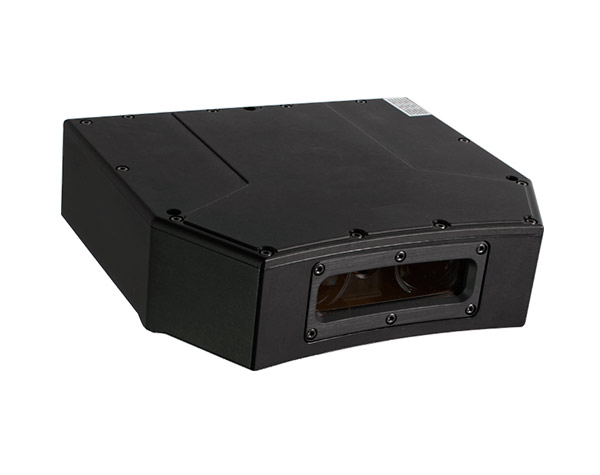

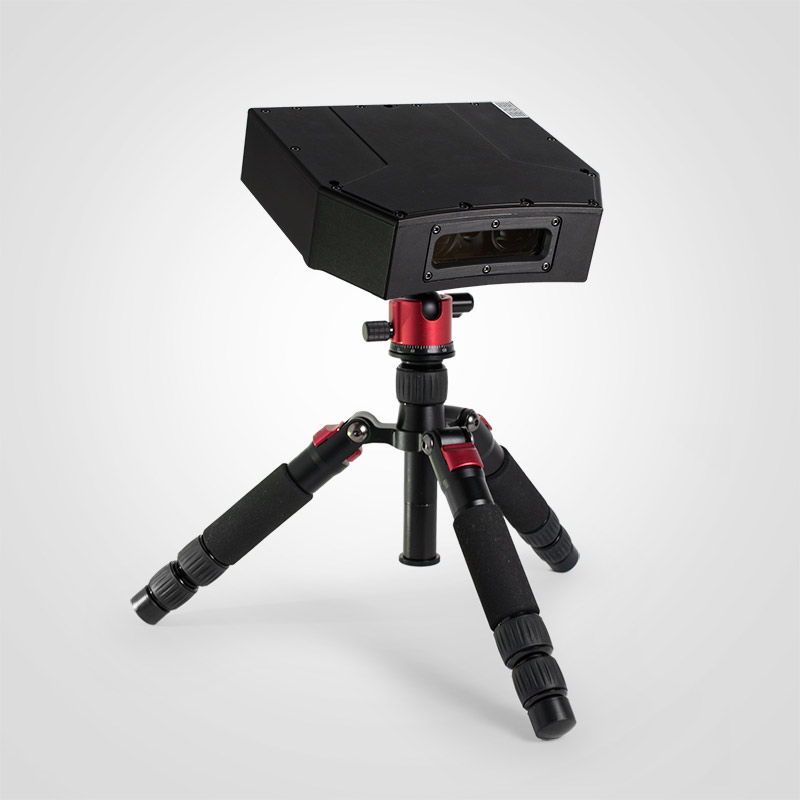

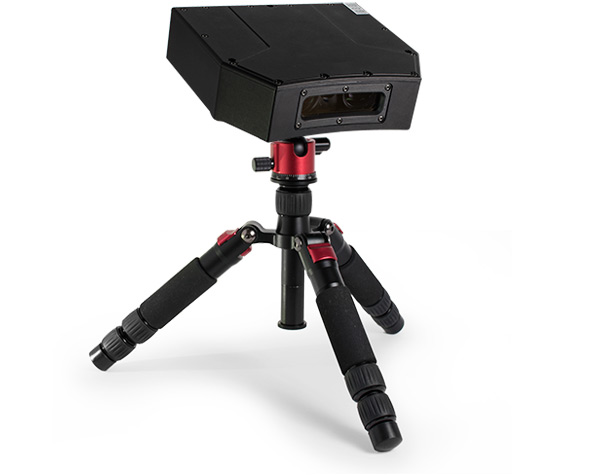

Polyga Compact C504

3D scanning of extremely small parts of approximately 0.5 – 3 cm in high resolution and accuracy. Ranked 10 Best 3D Scanners by Aniwaa.

Get Pricing

Product Description

• Type: Professional desktop 3D scanner (IP67 rated for industrial use)
• Dimension (mm): 49 x 152 x 178
• Cameras: A pair of 5 megapixel cameras, monochrome
• Software: Flexscan3D for 3D capturing and post-processing

Technical Specifications

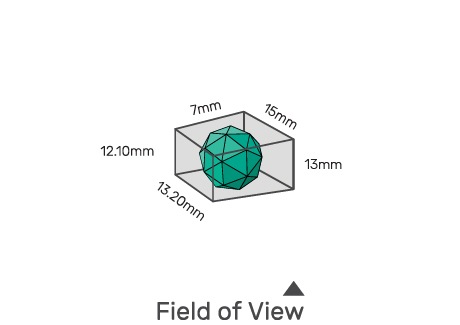

• Field of view (mm):Area or volume the scanner can “see” at one time 13.2 x 12.1 – 15.0 x 13.0
• Point-to-point distance (mm):Distance between two points in a 3D model 0.0067- 0.0071
• Accuracy: Closeness of a 3D measurement to the true value Up to 6 micron

Case Study

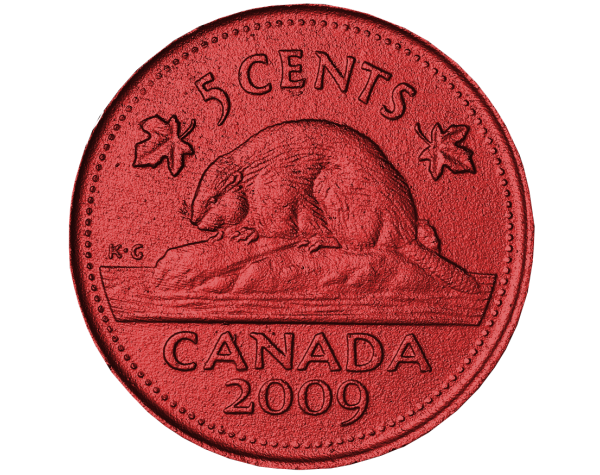

• Various Scans

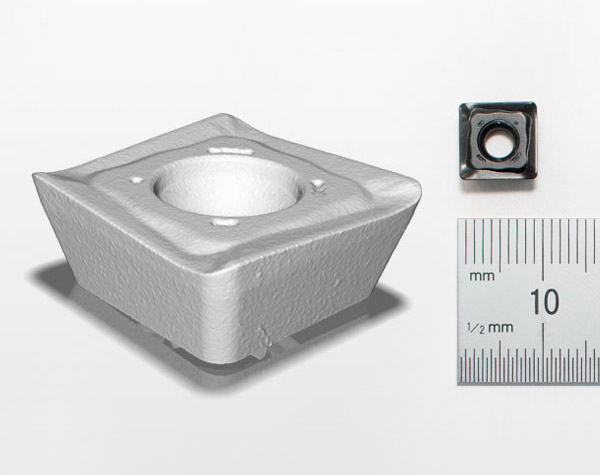

• Drill Bits
