Scan Objects Small and Large

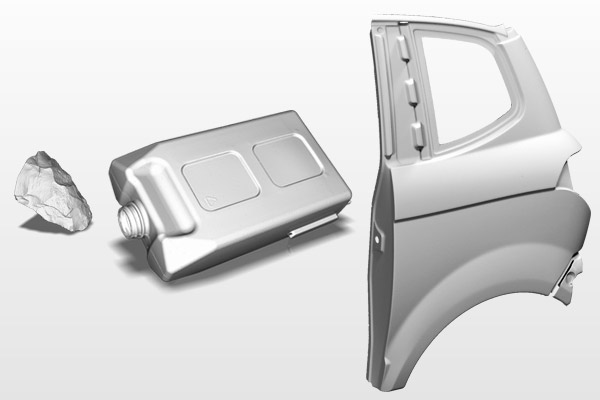

The Polyga CarbonXL 3D scanner empowers you to scan objects as small as an artifact to a car door using only a single system.
Polyga CarbonXL
The new Polyga CarbonXL has a wider adjustable field-of-view and a brighter projector compared to the original model. Giving you even more flexibility and control for 3D scanning.
Order NowProduct Description
- Type: Professional 3D scanner, Tripod mounted
- Dimension (cm): 30.4 x 40.6 x 20.3
- Cameras: 2 x 5 megapixel, monochrome or color
- Software: Flexscan3D for 3D capturing and post-processing
Technical Specifications
- Adjustable Field of view (mm):Area or volume the scanner can “see” at one time 70 – 800 diagonal
- Point-to-point distance (mm):Distance between two points in a 3D model
70mm FOV: 0.027
800mm FOV: 0.260 - Accuracy: Closeness of a 3D measurement to the true value
70mm FOV: 25 microns (0.025mm)
800mm FOV: 70 microns (0.070mm)
Case Study
Flexible Design, Maximum Value
Instead of having only two preset mounting positions on the mount like the original Carbon, you can place the cameras anywhere on the CarbonXL’s flexible slider mount. Create any field of view you want.
-
Minimum Camera Mounting Position
70mm Field of View:
for scanning smaller objects -
Maximum Camera Mounting Position
800mm Field of View
for scanning larger objects
Polyga CarbonXL was developed out of a growing need for a professional 3D scanning system that provides the maximum flexibility that we have ever engineered, while giving you full control.
Large Field of View
The CarbonXL creates the largest field of view out of all the Polyga 3D scanners at 800mm.
Brighter Projection
The Polyga CarbonXL uses a projector with more lumens to achieve higher quality results. The system can scan farther away and scan darker objects much easier.
Detaches Easily for Packing
The 3D scanner’s detachable railing system makes it easy to disassemble for storage or travelling to an off-site location.
Get It In Detail
The CarbonXL 3D scanner uses a pair of 5 megapixel industrial machine vision cameras to get capture all the fine details in your scan target.
